NOTICE:

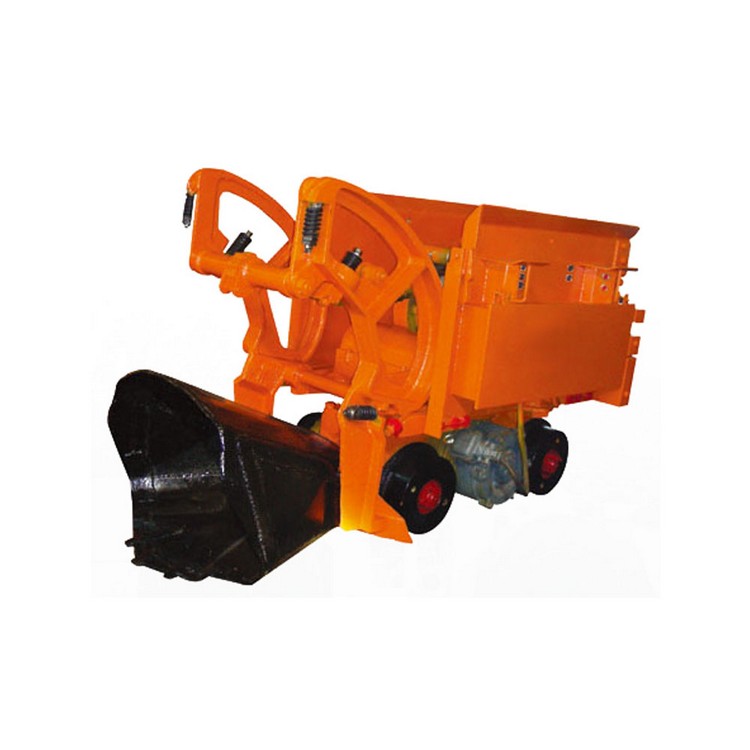

Z Type electric rock mucking loading machine is used to load the rock, ore when the explosive blows up the big rock or ore in underground mining or tunnel. Z Type Electric Rock Mucking Loader’s loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, and etc. The max diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, please tell in advance.
1. Remove the dust falling on the fuselage
2. Check that the oil level of the gearbox of the mechanical moving mechanism and the bucket promotion mechanism shall not be lower than the inspection hole 20-30mm
3. Check whether the mucking loading machine chain and spring are reliable.
4. Check the tension of the stabilizer spring and the fixed state of the damping spring.
5. Whether the pivot connecting the moving mucking loading machine part and the circling part seat plate is tightened, and whether the pin of the pivot is lost.
6. Check the rock mucking loading machine condition of the cables leading to the machine.
7. Check the rock mucking loader control box switch
