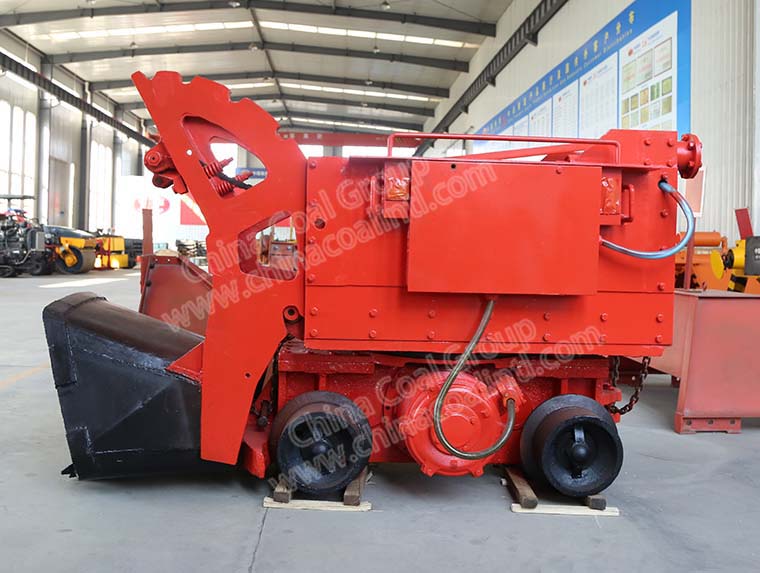

z series electric rock loaders are suitable for all kinds of mine horizontal roadway, the slope is less than or equal to 8 degrees, the machine for the bucket type, before loading and unloading, self-running, aerodynamic power source has two kinds of pneumatic and electric.
|
Type |
Z-17AW |
Z-20 |
Z-20AW |
Z-30AW |
ZQ-26 |
|
|
Loading Capacity (m3/h) |
20-30 |
30-40 |
30-40 |
50-60 |
40-50 |
|
|
Capacity(m3) |
0.17 |
0.2 |
0.2 |
0.3 |
0.26 |
|
|
Loading Width(M) |
1.7 |
2.0 |
2.0 |
2.2 |
2.7 |
|
|
Rail Gauge(mm) |
600mm (When the rail gauge is 750mm,762mm, please mark in the order) |
|||||
|
Power |
Electric motor |
Electric motor |
Electric motor |
Electric motor |
wind motor |
|
|
Travel Power(kw) |
10.5 |
10.5 |
10.5 |
1.5 |
10.5 |
|
|
Raising Hopper Power(kw) |
10.5 |
10.5 |
13 |
15 |
15 |
|
|
Discharge Height(mm) |
1250 |
1330 |
1360 |
1370 |
1250 |
|
|
Dimension(mm) |
Length (bucket down) L |
2120 |
2480 |
2400 |
2620 |
2375 |
|
Width (pedal down) |
1011 |
1210 |
1330 |
1300 |
1380 |
|
|
Height (bucket working) H2 |
1920 |
2180 |
2180 |
2260 |
2240 |
|
|
Height (bucket down) H1 |
1200 |
1518 |
1460 |
1545 |
1455 |
|
|
Weight(kg) |
3760 |
3750 |
3700 |
4600 |
2700 |
|
