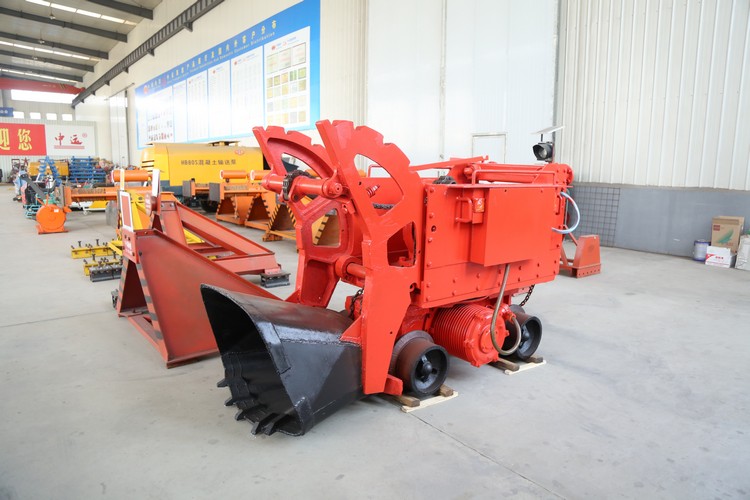

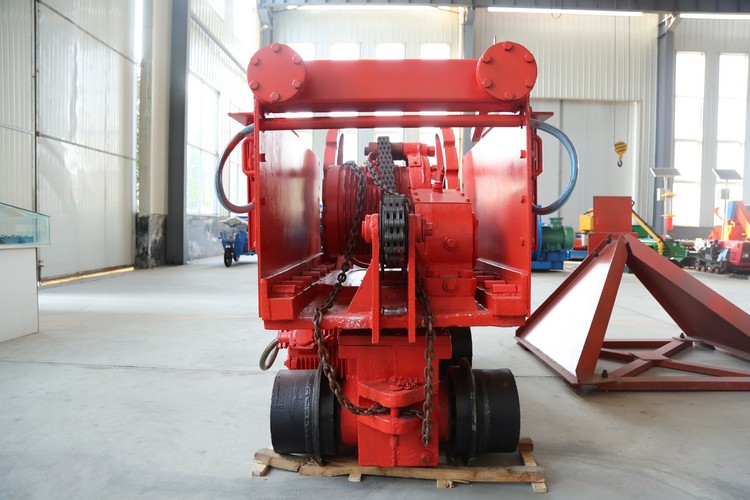

Z-20W Tunnel Rocker Shovel Loader is used to load the rock, ore when the explosive blows up the big rock or ore, loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, etc. The max diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. Z-20W Rocker Shovel Loader runs on the railway track, so the wheel gauge is 600mm in normal; inform us when the gauge is 762mm, 900mm, or others.
|
Model |
Z-20W |
Z-20 |
|
|
Loading capacity m3h |
30-40 |
34-40 |
|
|
Bucket volume m3 |
0.2 |
0.2 |
|
|
Loading width m |
2 |
2 |
|
|
Track gauge mm |
600（When the track gauge is 750、762、900 Please make a note when booking） |
||
|
Power |
Electrical motor |
Electrical motor |
|
|
Walking power kW |
10.5 |
10.5 |
|
|
Bucket power kW |
13 |
13 |
|
|
Unloading height mm |
1360 |
1330 |
|
|
Machine Dimensions mm |
Length (when the bucket is Put down) |
2400 |
2400 |
|
|
Width (when the pedal is Put down) |
1330 |
1330 |
|
|
Height (when the bucket is Working) |
2180 |
2180 |
|
|
Height (when the bucket is Put down) |
1460 |
1518 |
|
|
|
|
|
