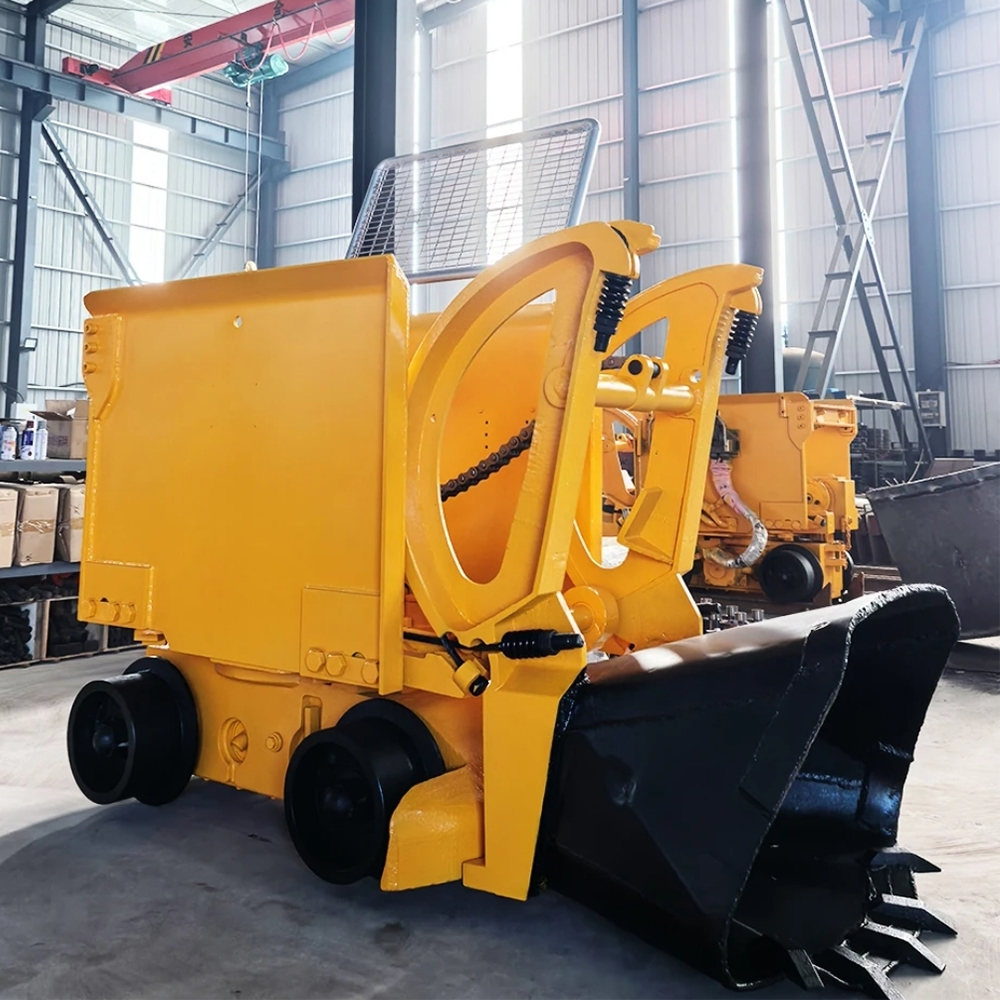

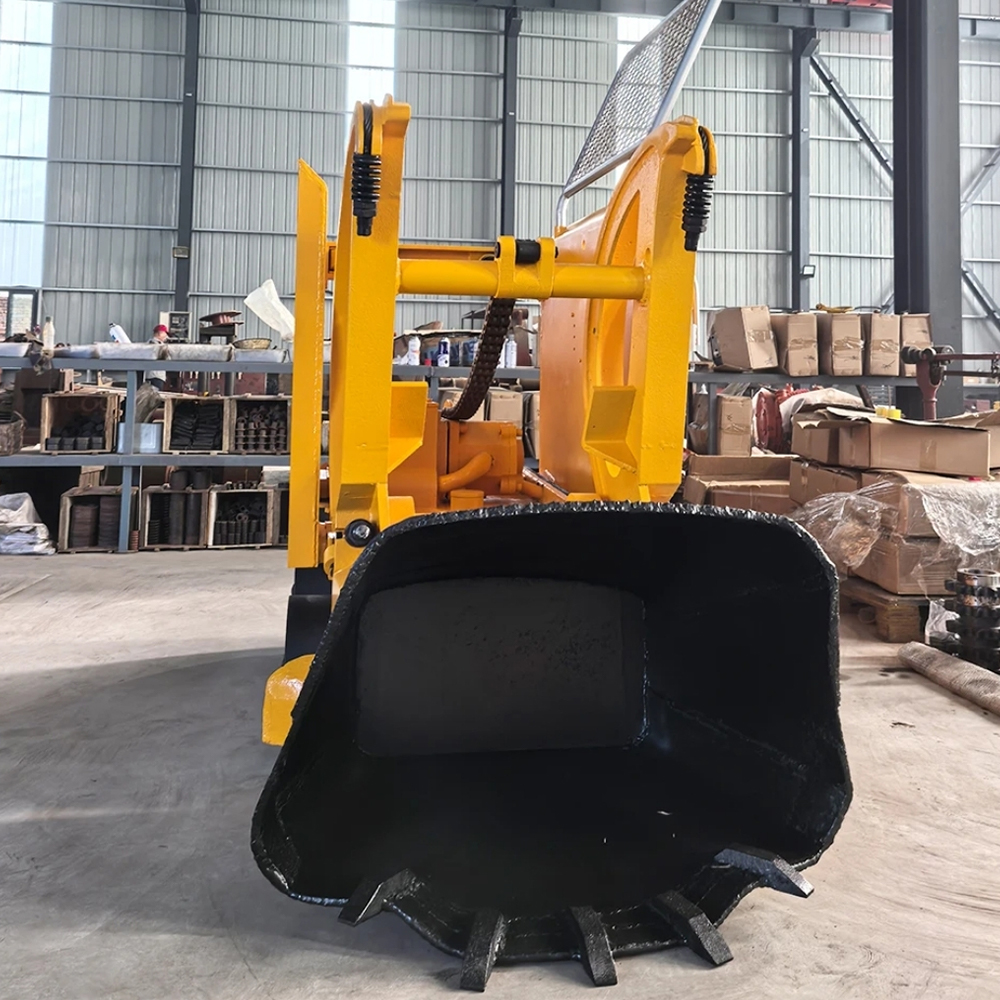

Z-30W Rock Shovel Loader

1. Strictly prohibit other people to operate the machine expect the technician. 2. Strictly prohibit two people work at each side together. 3. Strictly prohibit check the machine before the electric

Introduction of Z-30W Rock Shovel Loader

1. Strictly prohibit other people to operate the machine expect the technician.

2. Strictly prohibit two people work at each side together.

3. Strictly prohibit check the machine before the electric motor put off.

4. Scope of application: section of the tunnel: width: >=1.8m, Height: >=2.0m.

Advantage of Electric Z-30W Rock Shovel Loader

1. Z-30W Rock Shovel Loader is compacted in structure which works on narrow roadway. Z-30W Rock Shovel Loader is stable in operation, with no need of maintenance at the front 2000 hours

2. Z-30W Rock Shovel Loader can load wide range of materials. Z-30W Rock Shovel Loader is of high efficiency.

3. Z-30W Rock Shovel Loader has great humidity resistance. Z-30W Rock Shovel Loader can be used in dry or damp places

4. Z-30W Rock Shovel Loader adopt alloy wear resistance materials which can be in utilization for a long time

Parameter of Z-30W Rock Shovel Loader

Model		Z-30W
Loading capacity m3h		50-60
Bucket volume m3		0.3
Loading width m		2.7
Track gauge mm		600(note When the track gauge is 750 762 900)
Power		Electrical motor
Walking power kW		15
Bucket power kW		15
Unloading height mm		1350
Machine Dimensions mm	Length (when the bucket is Put down)	2620
	Width (when the pedal is Put down)	1300
	Height (when the bucket is Working)	2350
	Height (when the bucket is Put down)	1570
Machine weight kg		4600
