NOTICE:
1. Z-30W Rock Shovel Loader is compacted in structure which works on narrow roadway. Z-30W Rock Shovel Loader is stable in operation, with no need of maintenance at the front 2000 hours 2. Z-30W
1. Strictly prohibit other people to operate the machine expect the technician.
2. Strictly prohibit two people work at each side together.
3. Strictly prohibit check the machine before the electric motor put off.
4. Scope of application: section of the tunnel: width: >=1.8m, Height: >=2.0m.

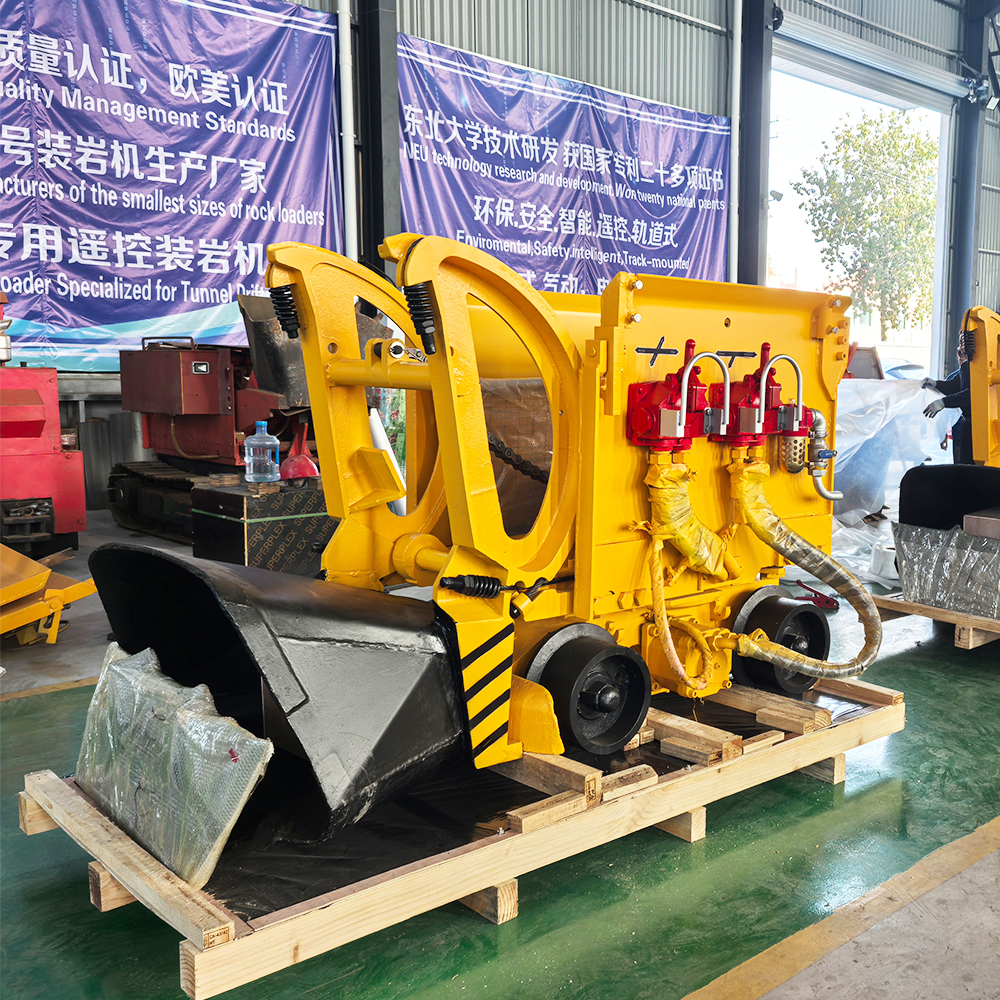

1. Z-30W Rock Shovel Loader is compacted in structure which works on narrow roadway. Z-30W Rock Shovel Loader is stable in operation, with no need of maintenance at the front 2000 hours
2. Z-30W Rock Shovel Loader can load wide range of materials. Z-30W Rock Shovel Loader is of high efficiency.
3. Z-30W Rock Shovel Loader has great humidity resistance. Z-30W Rock Shovel Loader can be used in dry or damp places
4. Z-30W Rock Shovel Loader adopt alloy wear resistance materials which can be in utilization for a long time
Model |
Z-30W |
|
Loading capacity m3h |
50-60 |
|
Bucket volume m3 |
0.3 |
|
Loading width m |
2.7 |
|
Track gauge mm |
600(note When the track gauge is 750 762 900) |
|
Power |
Electrical motor |
|
Walking power kW |
15 |
|
Bucket power kW |
15 |
|
Unloading height mm |
1350 |
|
Machine Dimensions mm |
Length (when the bucket is Put down) |
2620 |
Width (when the pedal is Put down) |
1300 |
|
Height (when the bucket is Working) |
2350 |
|
Height (when the bucket is Put down) |
1570 |
|
Machine weight kg |
4600 |
