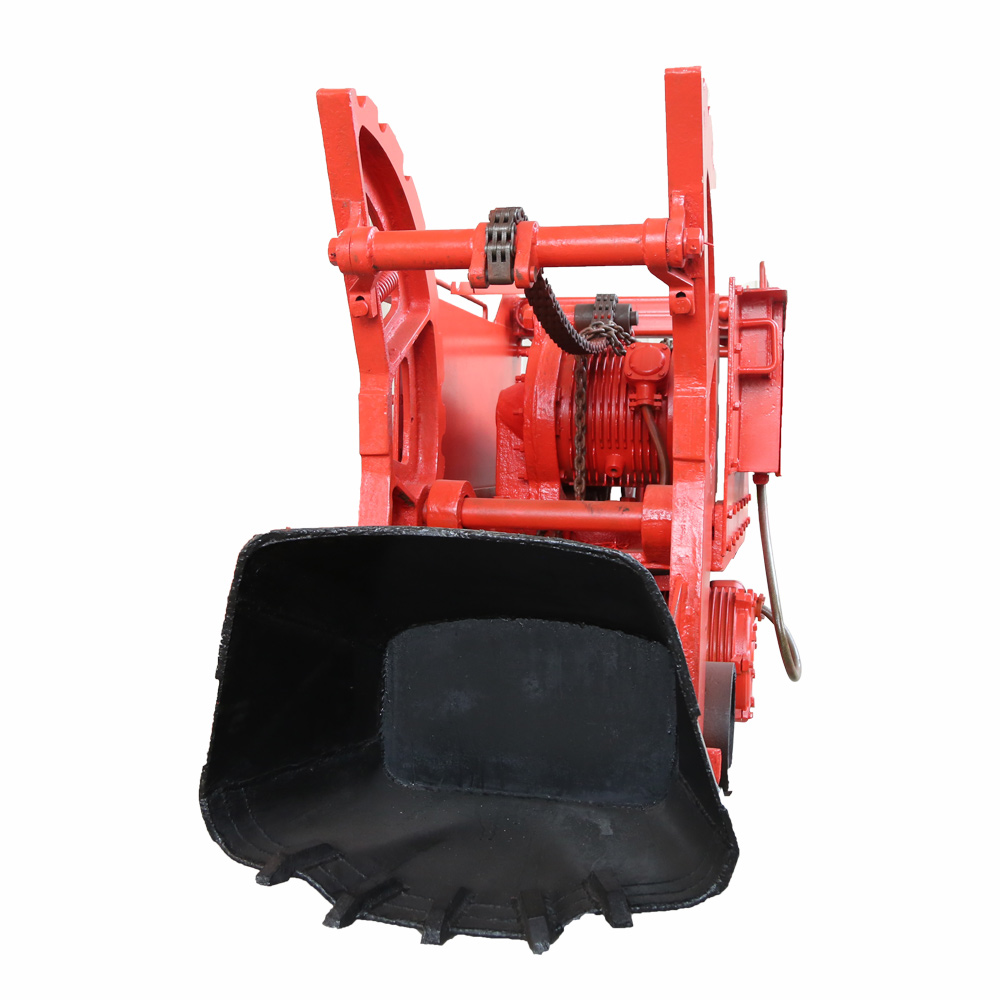

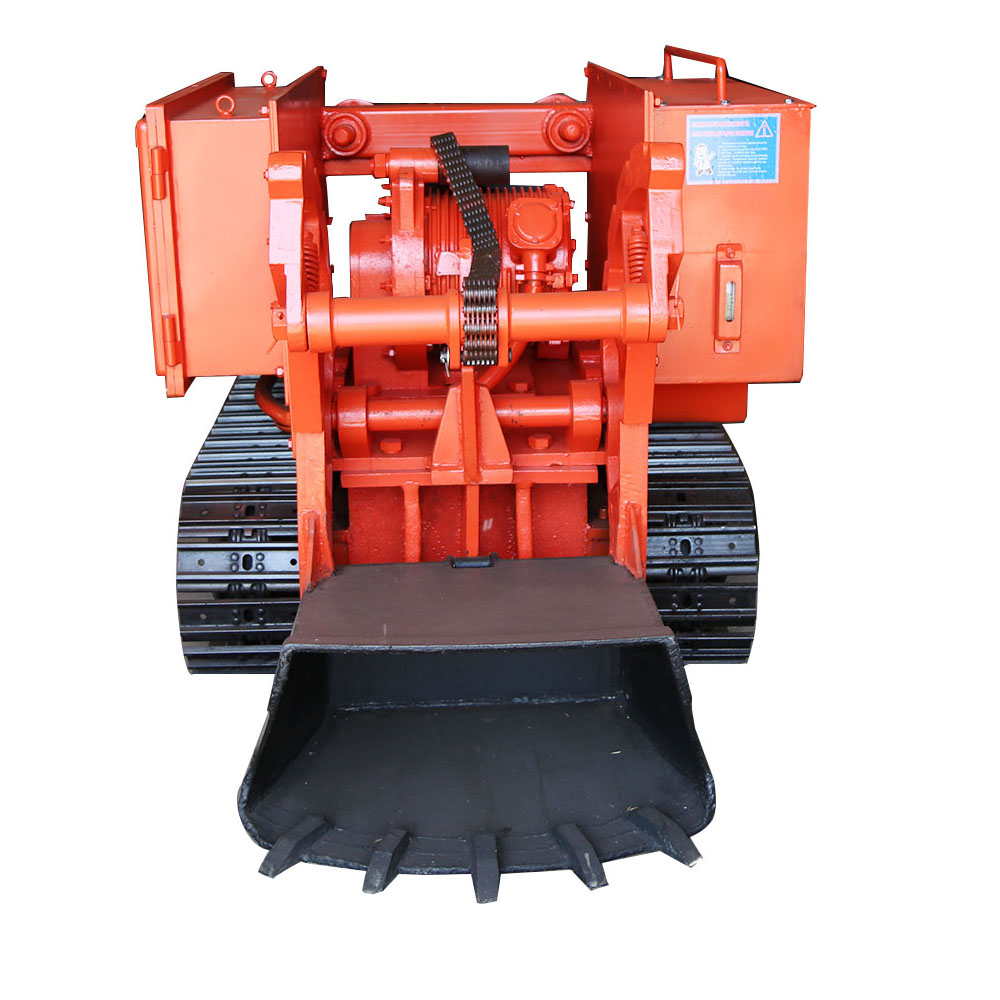

Z Series Mining Mucker Machines are designed as light, compact, flexible, easy operated and stable working equipment for underground mining, suitable for normal rocks, stones, grits, iron mine, gold mine, granite mine, and other metal or nonmetal mines.
Maximum size of the loadable rocks can be 500mm diameter, and they gain highest efficiency by loading 100-400mm diameter rocks.
Z Series Mining Mucker Machines are suitable for level tunnels (8degree maximum) for various underground mines.
Z Series Mining Mucker Machines are designed as electric or compressed air driven, single bucketed and automatic walking machines by loading at front and unloading at back.
|
Type |
Z-17AW |
Z-20 |
Z-20AW |
Z-30AW |
ZQ-26 |
|
|
Loading Capacity (m3/h) |
20-30 |
30-40 |
30-40 |
50-60 |
40-50 |
|
|
Capacity(m3) |
0.17 |
0.2 |
0.2 |
0.3 |
0.26 |
|
|
Loading Width(M) |
1.7 |
2.0 |
2.0 |
2.2 |
2.7 |
|
|
Rail Gauge(mm) |
600mm (When the rail gauge is 750mm,762mm, pls mark in the order) |
|||||
|
Power |
Electric motor |
Electric motor |
Electric motor |
Electric motor |
wind motor |
|
|
Travel Power(kw) |
10.5 |
10.5 |
10.5 |
1.5 |
10.5 |
|
|
Raising Hopper Power(kw) |
10.5 |
10.5 |
13 |
15 |
15 |
|
|
Discharge Height(mm) |
1250 |
1330 |
1360 |
1370 |
1250 |
|
|
Dimension(mm) |
Length (bucket down) L |
2120 |
2480 |
2400 |
2620 |
2375 |
|
Width (pedal down) |
1011 |
1210 |
1330 |
1300 |
1380 |
|
|
Height (bucket working) H2 |
1920 |
2180 |
2180 |
2260 |
2240 |
|
|
Height (bucket down) H1 |
1200 |
1518 |
1460 |
1545 |
1455 |
|
|
Weight(kg) |
3760 |
3750 |
3700 |
4600 |
2700 |
|
