NOTICE:
Mucking Machine for loading ore or rock in horizontal or gently inclined tunnels. Mucking Loading Machine is a machine that loads ore or rock in horizontal or gently inclined tunnels. The advantages are flexible and reliable work, high Mucking Loading Machine productivity, and applicable to geological exploration tunnels for Tunnel Mucking Machine.
According to the form of its working mechanism, Mucking Machine can be divided into rake bucket type, bucket type, crab claw type, vertical claw type and grab bucket type. Mucking Machine is mainly used in coal mine, metallurgical mine, tunnel and other engineering roadway excavation with mine car or bucket for Tunnel Mucking Machine loading.
This paper introduces in detail the structure, Mucking Machine working principle and use of the scraper, bucket and crab claw types, and further introduces the maintenance of the Mucking Loading Machine and the post operation rules of the Mucking Loading Machine.
1. Mucking Machine Strictly prohibit other people to operate the machine expect the technician.
2. Mucking Machine Strictly prohibit two people work at each side together.
3. Mucking Machine Strictly prohibit check the machine before the electric motor put off.
4. Mucking Machine Scope of application: section of the tunnel: width: >=1.8m, Height: >=2.0m.

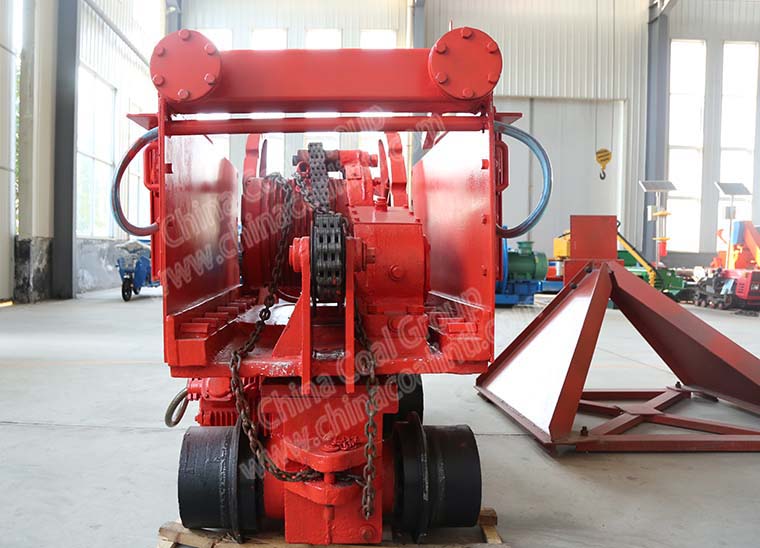

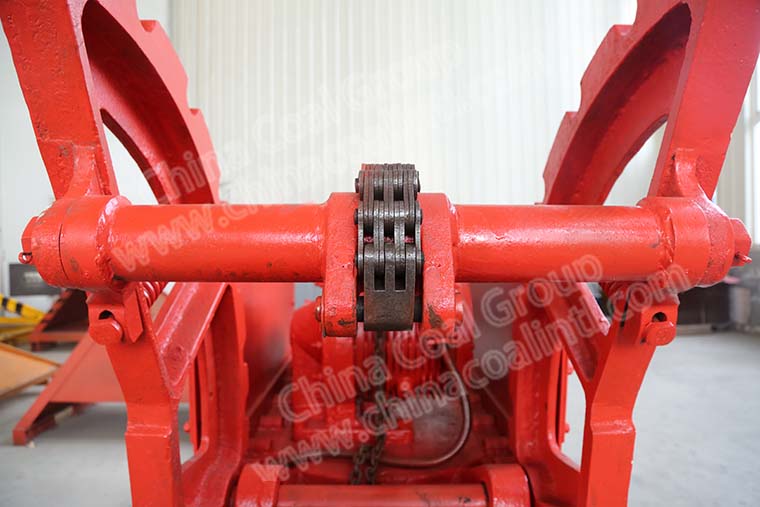

1. Z-30W Rock Shovel Loader Mucking Machine is compacted in structure which works on narrow roadway. Z-30W Rock Shovel LoaderMucking Machine is stable in operation, with no need of maintenance at the front 2000 hours
2. Z-30W Rock Shovel Loader Mucking Machine can load wide range of materials. Z-30W Rock Shovel Loader is of high efficiency.
3. Z-30W Rock Shovel Loader Mucking Machine has great humidity resistance. Z-30W Rock Shovel Loader can be used in dry or damp places
4. Z-30W Rock Shovel Loader Mucking Machine adopt alloy wear resistance materials which can be in utilization for a long time
|
Model |
Z-30W |
|
|
Loading capacity m3h |
50-60 |
|
|
Bucket volume m3 |
0.3 |
|
|
Loading width m |
2.7 |
|
|
Track gauge mm |
600(note When the track gauge is 750 762 900) |
|
|
Power |
Electrical motor |
|
|
Walking power kW |
15 |
|
|
Bucket power kW |
15 |
|
|
Unloading height mm |
1350 |
|
|
Machine Dimensions mm |
Length (when the bucket is Put down) |
2620 |
|
Width (when the pedal is Put down) |
1300 |
|
|
Height (when the bucket is Working) |
2350 |
|
|
Height (when the bucket is Put down) |
1570 |
|
|
Machine weight kg |
4600 |
|
