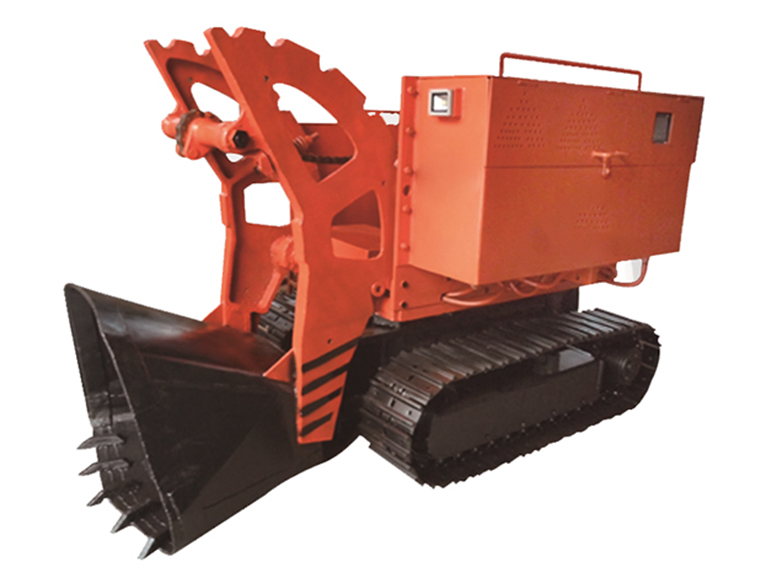

The structure of a mucking machine, also known as a mining loader, typically consists of several integral parts that work together to achieve its functionality. Here's a detailed breakdown of its structure:
1. Power Source
Electric Transmission: The Rock Mucking Loader often adopts electric transmission for operational efficiency.
Diesel Engine: In addition to electric power, a diesel engine is usually equipped to provide power for traveling between worksites.
2. Drive System
Rear Wheel Drive: The drive system of the Mucking Loading Machine is designed with rear wheel drive for maneuverability and stability.
3. Loader and Conveyor Assembly
Collecting and Transporting Parts: The machine is a combination of a loader and a conveyor. The loader collects materials, while the conveyor transports them.
Conveyor Belt: It has a conveyor belt with specified dimensions (e.g., width of 700 mm and length of 5000 mm) to efficiently transport materials.
4. Control System
Hydraulic Assisted Brake: The control system includes a hydraulic assisted brake for safe and controlled operation.
Operational Controls: Additional controls allow the operator to manage the various functions of the machine, such as loading, conveying, and traveling.
5. Structural Components
Frame and Body: The machine is built with a sturdy frame and body to support its operational components and withstand the rigors of mining environments.
Roller Conveyor Structure: Specifically designed to handle the transport of materials within the mining tunnel or site.
6. Additional Features
Fire-Resistant Materials: The machine is constructed using fire-resistant materials to ensure safety in potentially hazardous environments.
Explosion-Proof Design: Additional safety features include an explosion-proof design to prevent accidents in explosive atmospheres.
7. Dimensions and Weight
Dimensions: Typical dimensions might be around 5900 x 1620 x 1570 mm (Lx W x H).
Weight: The machine weighs approximately 2500 kg, reflecting its robust construction and functional capabilities.
In summary, the structure of a mucking machine is designed for efficiency, safety, and durability in mining environments. It integrates various components to collect, transport, and load materials, while ensuring operator safety and machine reliability.
