NOTICE:

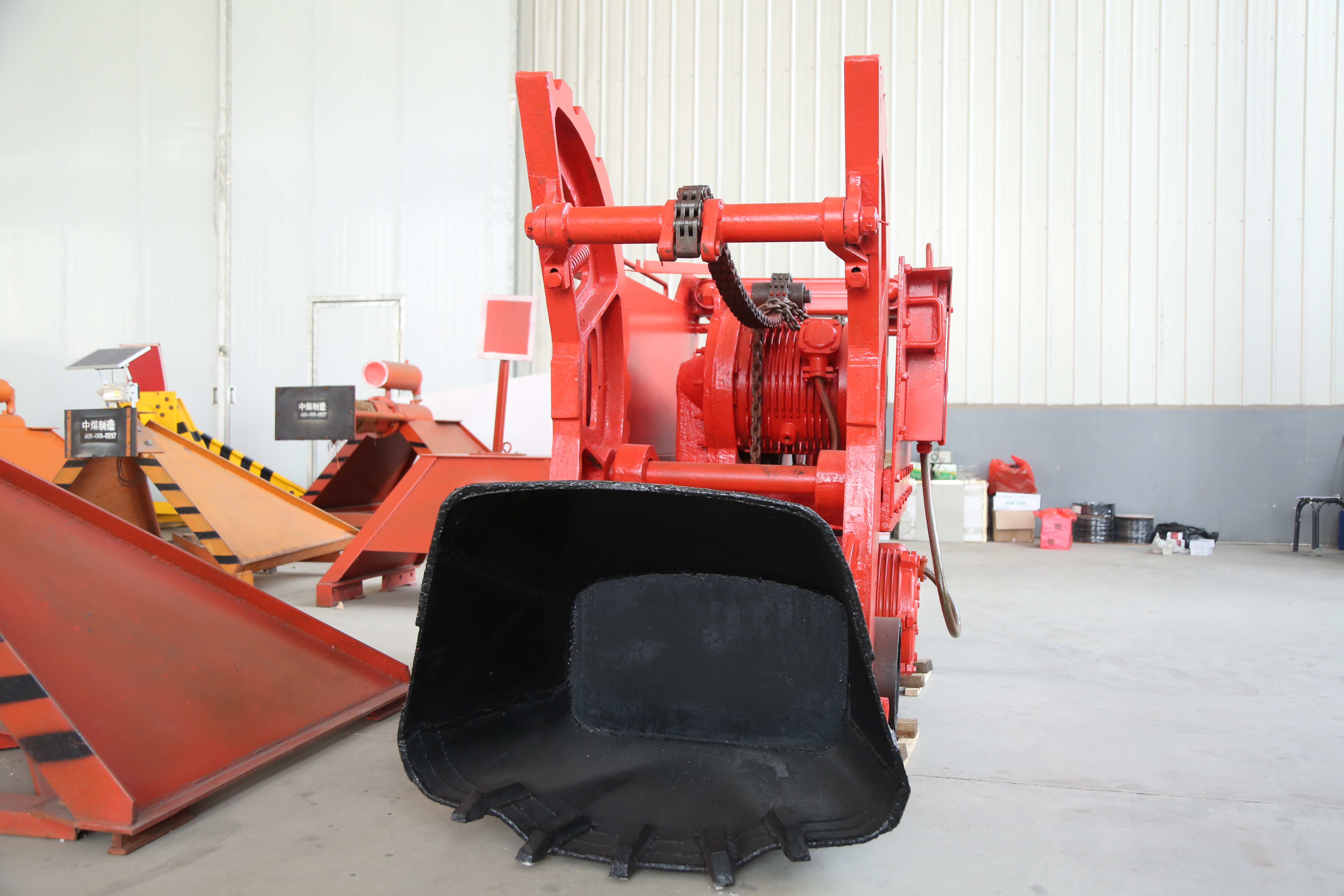

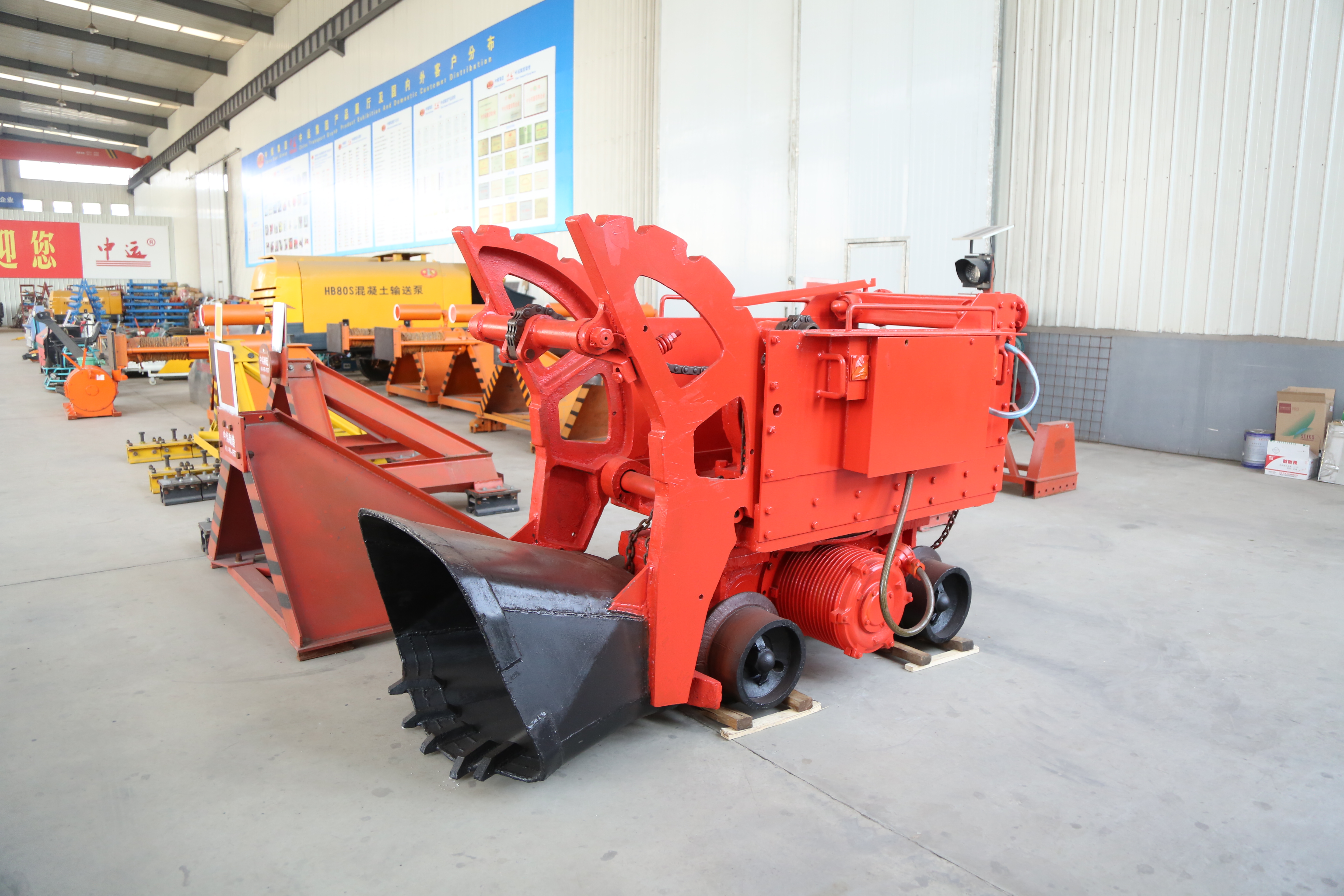

Z-20/30 Tunnel Mucking Machine is rail wheel type for underground tunneling and mining field light loading equipment. Z-20/30 Tunnel Mucking Machine has the advantages of compact, adaptable, reliable, easy operation and maintenance, all the general rock, gravel, iron ore, gold ore, granite and other metal or non-metal mines can be loaded. The max diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best.
The tunnel electric rock loader is bucket style with front loading and back unloading, self-propelled. This type of tunnel mucking loader is suitable for nonferrous, gold mining various types of mine area or diversion tunnel project, with high durability, long life and other advantages. Z-20/30 tunnel mucking machine is not explosion-proof, don't use in the environment with methane and other flammable gases etc.
|
Model |
Z20 |
Z30 |
|
|
load capacity |
40cbm/h |
60cbm/h |
|
|
bucket capacity |
0.2cbm |
0.3cbm |
|
|
loading Width |
1900mm |
2200-2500mm |
|
|
Discharge height (H) |
1250mm |
1300mm |
|
|
Dumping reach (S) |
350mm |
350mm |
|
|
Max operating height (H2) |
1940mm |
2250mm |
|
|
Travel speed |
0.99m/s |
0.99m/s |
|
|
motor model |
JI2-8 |
JI2-8 |
|
|
motor power |
2x10.5kw |
2x13kw |
|
|
track gauge |
|
600mm (customized) |
600mm (customized) |
|
overall dimension |
L (bucket is down) |
2120mm |
2590mm |
|
W |
1070mm |
1200mm |
|
|
H (bucket is down) |
1305mm |
1443mm |
|
|
|
|
|
|
|
machine weight |
|
3400kg |
4300kg |
